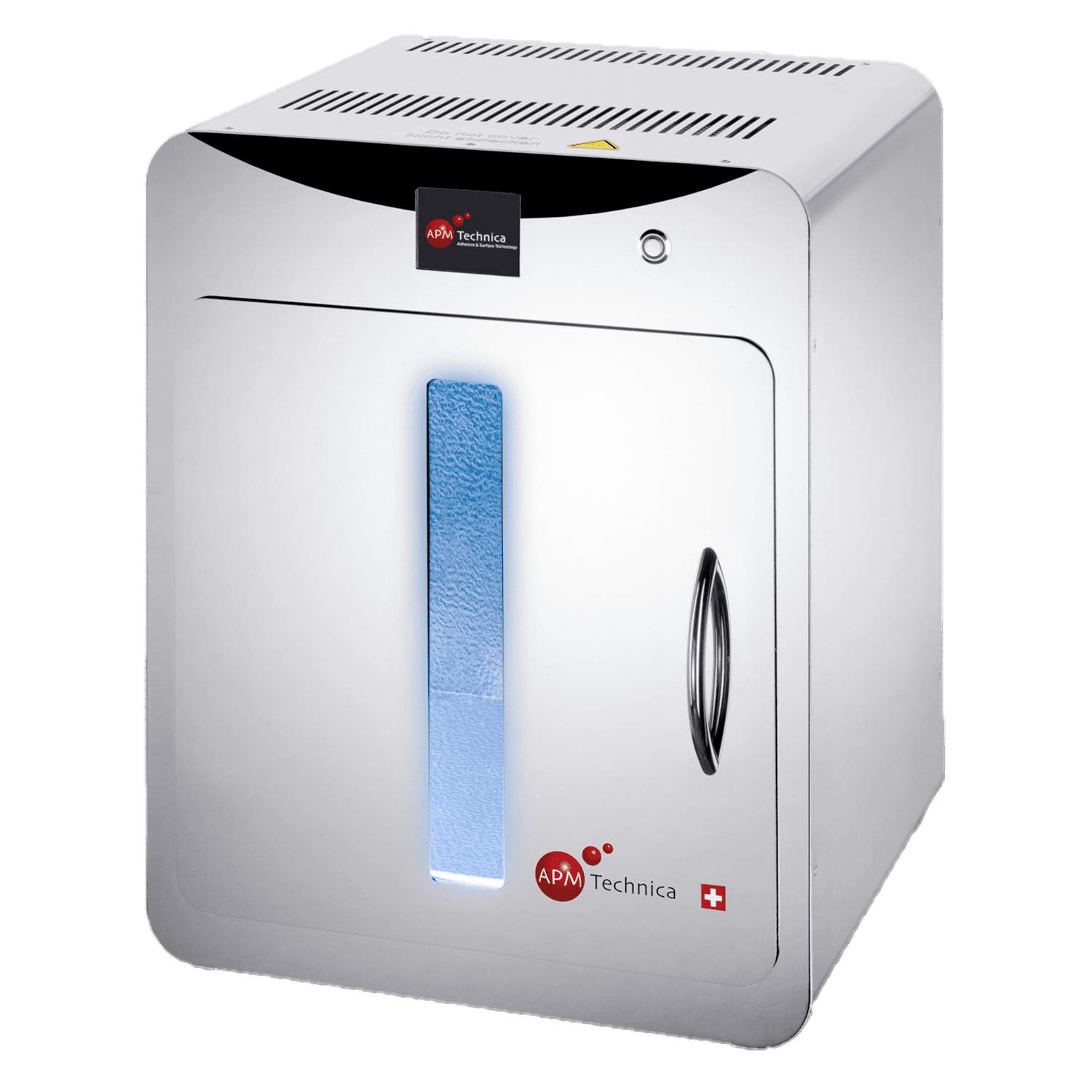

APM Technica AGAPM LED UV cabinet III

The APM LED UV cabinet is equipped with LED light sources with a wavelength of 365 nm / 405 nm. The cabinet is used for low-stress curing of UV adhesives and optical UV fine putties. The temperature of the components exposed to UV light rises only slightly, which reduces the distortion of the optical parts. The LED UV cabinet is made of stainless steel and is fully equipped with special UV reflectors on the inside. This results in homogenised irradiation with diffuse UV light. The curing parameters (duration, irradiation intensity) are controlled via a touchscreen. The cabinet is supplied with two UV-permeable trays so that the curing volume can be optimised.

Equipment variants

In the standard version, LEDs with a wavelength of 365 nm / 405 nm are used, whereby the radiant power is approx. 10 mW/cm2 (centre of the cabinet). Optionally, other wavelengths can be generated or higher performance classes can be achieved with multiple modules. In addition, rotary discs and nitrogen purging with oxygen monitoring can be offered.

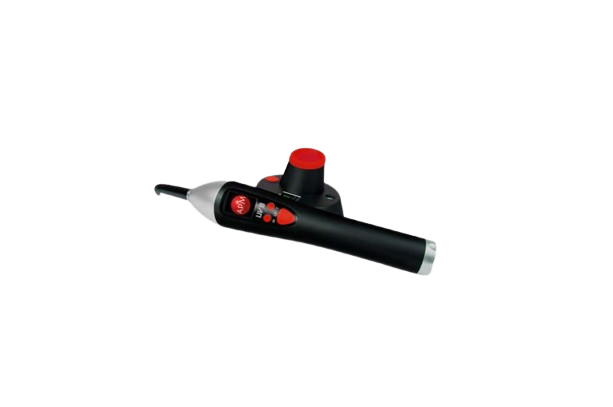

APM Technica AGAPM UV9 UV LED hand-held device

The APM UV9 LED is the first light source of its kind. It is both a UV and visible light curing system that utilises powerful light emitting diodes as the light source. This portable handheld device is powered by a rechargeable lithium-ion battery. The APM UV9 LED has a UV and visible energy output of up to 1800 mW/ cm2 and can emit 365 nm / 385 nm light, 405 nm / 420 nm light or a combination of all. The curing area is 1⁄2‘ at a distance of 1⁄2’ from the bonding area. A microprocessor controls the timer, audible beeps, temperature measurement and battery management. An LCD display on the device shows the selected exposure times of 1~60 seconds. The LCD display also shows the battery charge level. The device can be switched off manually at any time by pressing the start button a second time after the first start. The APM UV9 LED includes the light source, a rechargeable lithium-ion battery, holder with pass/fail radiometer, power supply and filter.

Data sheet APM UV9 LED hand-held device
